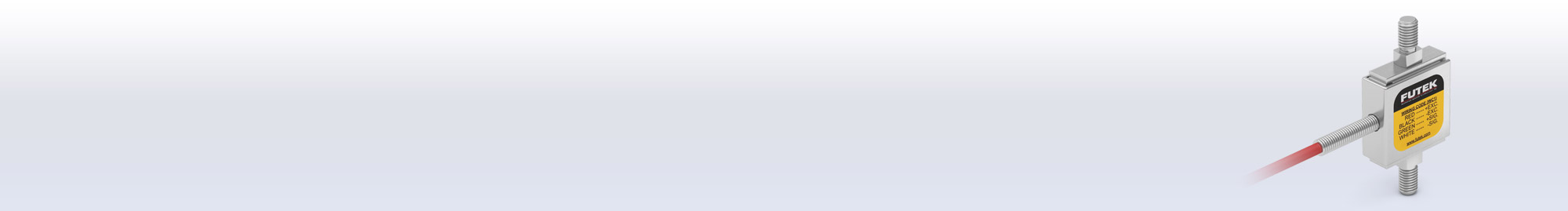

Miniature S-Beam Jr. Load Cell with Male Threads
Miniature S-Beam Jr. Load Cell with Male Threads
Description
The Miniature S-Beam Jr.™ Load Cell with Male Thread has become one of the signature products in the FUTEK Load Cell Series. The perfect mixture of size, accuracy and of course the assurance of an overload protection feature makes this one of our most sought after models. The Standard LRM200 model comes in 2024 Aluminum construction (10 gram - 10 lb) and 17-4 Stainless Steel (25 lbs – 100lbs), with a 5 ft 29 AWG 4 conductor shielded silicone cable.
With all of its design features the Miniature S-Beam Jr.™ Load Cell with Male Thread) has a high accuracy with a Nonlinearity of ±0.1%, deflection of 0.005” nominal and an operating temperature of -60° F to 200° F.
Product Highlights And Features
- Compact sized s-beam
- Available in both Aluminum or Stainless Steel
- External Matched output option available
- Built In Overload Protection
- In Both Tension & Compression
- Utilizes Metal Foil Strain Gauge Technology
- Weight: 0.5 oz (aluminum) / 1.1 oz (Steel)
